High performance stereo audio codec

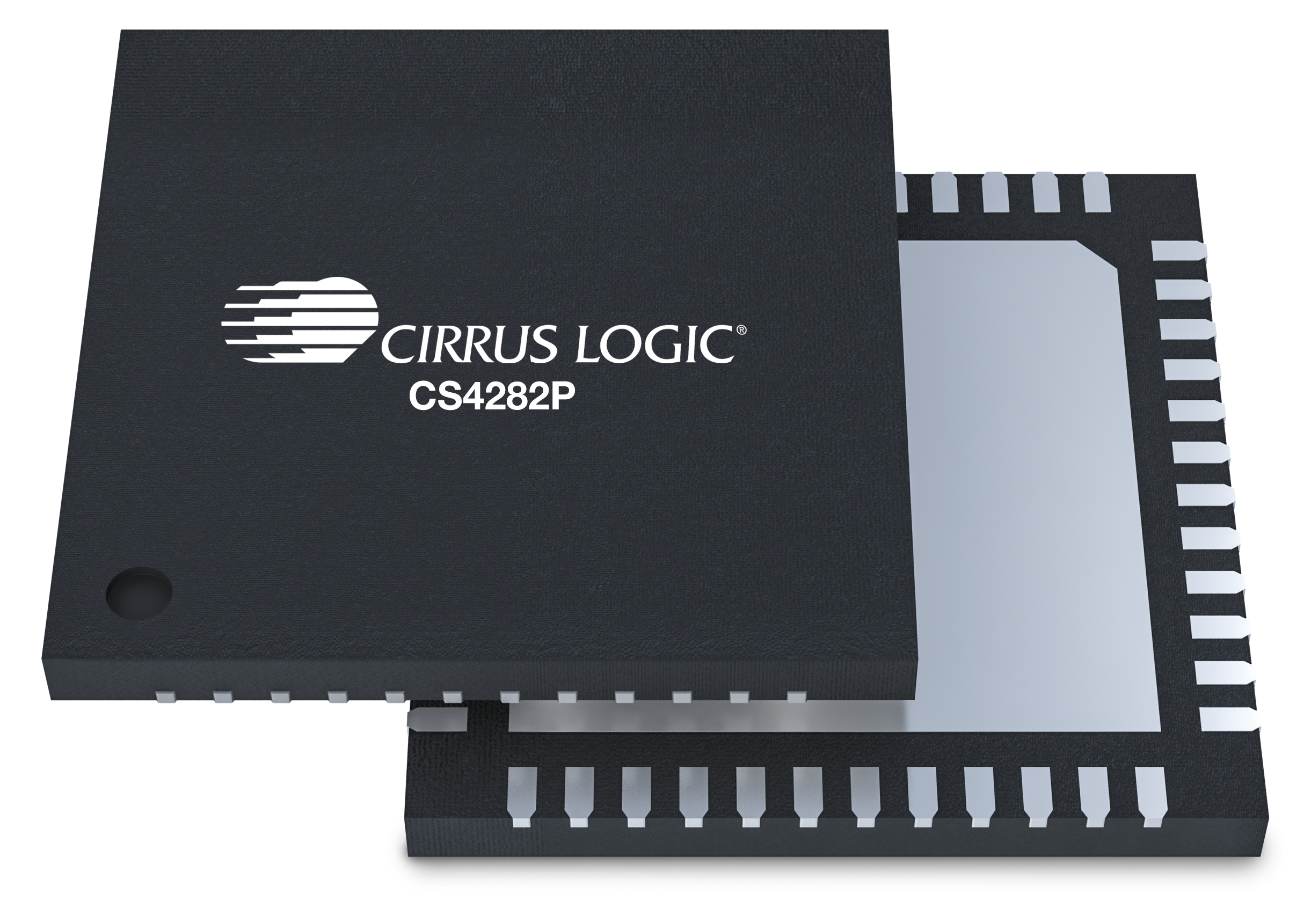

The Cirrus Logic CS4282P is part of a new series of pro audio converters aimed at providing the most transparent audio conversion. This transparency allows manufacturers to customize their end products. The CS4282P is the highest performing, 32-bit resolution Codec on the market. The device support stereo differential analog inputs/outputs and 32-bit digital out/in via the audio serial port (ASP) at sample rates up to 768 kHz.The ADC use a 5th-order, multibit sigma-delta modulator followed by digital filtering and decimation. This provides a dynamic range of over 123 dB and THD+N below -110 dB, all within a 25 mW/ch power budget. The DAC in the CS4282P uses a proprietary analog FIR architecture to reduce out-of-band noise and minimize the external component requirements. This provides a dynamic range of 129 dB and THD+N below -115 dB.
The device can be powered from a single rail and controlled by either hardware pins, I2C or SPI, making the devices both flexible and easy to integrate. This makes the CS4282P ideal for USB audio interfaces, home audio and audio video receivers, as well as musical instruments such as synthesizers, DJ mixers and amplifiers.
CIRRUS ROCKS® CIRRUS® ENGINEERED TO ROCK® INNOVATION THAT ROCKS®
テクノロジー
特長
- High-performance stereo codec
- Differential analog inputs/outputs
- 高分解能32ビットデジタル・アーキテクチャ
- 低レイテンシ・デジタル・フィルターとデジタル・ボリューム・コントロール
- PLLは、さまざまな外部システムのクロック基準をサポート
- 複数デバイス間での同期動作
- オーディオ・シリアル・ポート（ASP）サンプル・レート最大768 kHz
- I2S、左寄せ、TDMデータ形式
- DSD up to 512xfs
- ハイブリッド・ゲイン制御
- ハードウェアとソフトウェアの制御モード
- ホスト・プロセッサ不要のハードウェア制御
- I2C制御ポート、最大1 MHz
- SPI制御ポート、最大24 MHz
- 単一電源動作、3.3 V
- 1.8 V～3.3 Vデジタル入出力をサポート
パラメトリック仕様
| チャネル入力 | 2 |
| チャネル出力 | 2 |
| DAC THD+N (dB) | -115 |
| ADC THD+N (dB) | -110 |
| アナログ電源(V) | 3.3～3.3 |
| デジタル電源(V) | 3.3～3.3 |
| ロジック電源(V) | 1.8～3.3 |
| パッケージ | 48ピンQFN |
